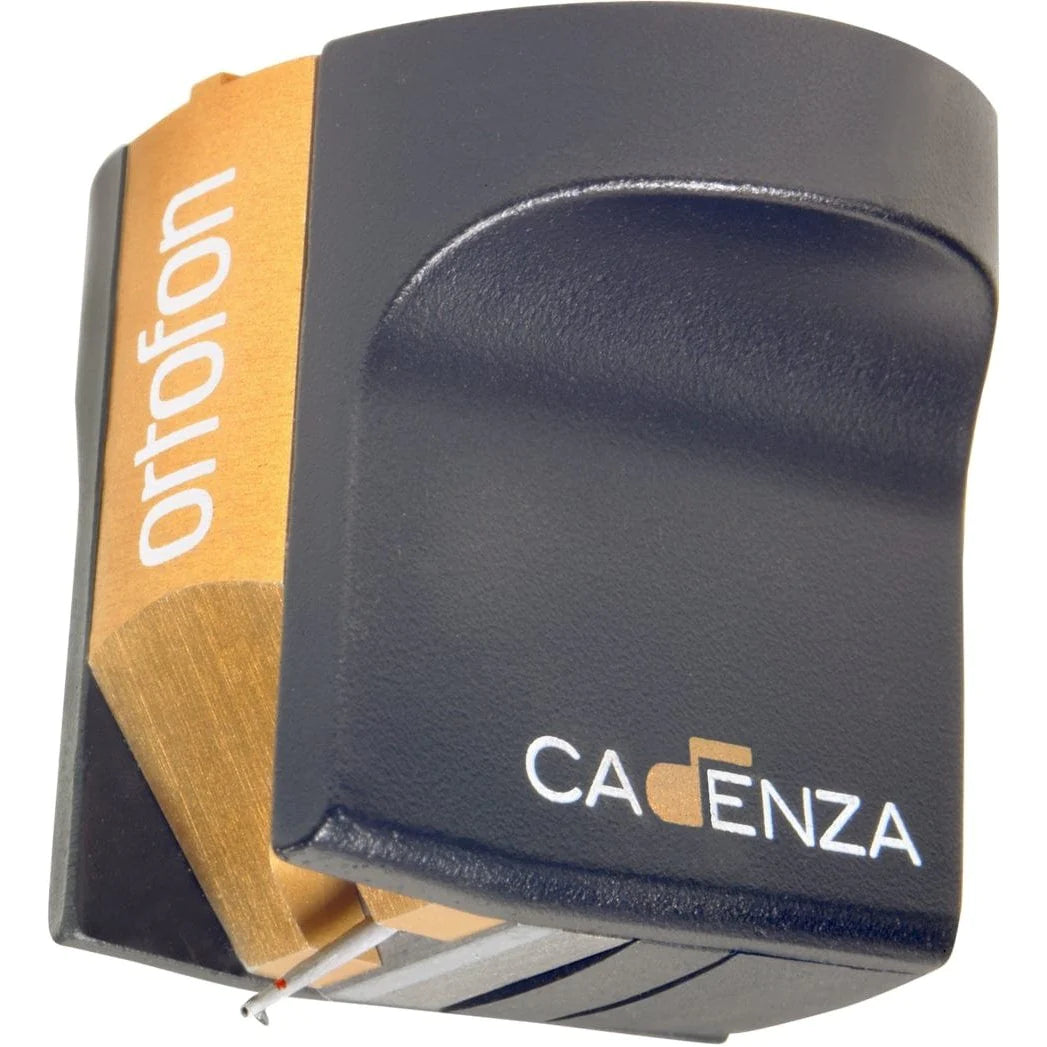

Ortofon MC Cadenza Bronze Moving Coil Cartridge
Ortofon MC Cadenza Bronze Moving Coil Cartridge
The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever. The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire. The Field Stabilizing Element (FSE), is used for optimal linearity especially during complex crescendo passages.
CADENZA BRONZE IS A TRUE HIGH-END REFERENCE CARTRIDGE, CONVEYING MUSIC WITH SUPREME PRECISION, IMPACT AND DYNAMICS. ITS STEREO IMAGING CAPABILITIES ILLUMINATE THE FARTHEST CORNERS OF THE SOUNDSTAGE IN ALL THREE DIMENSIONS.
Technical data
Output voltage at 1000 Hz, 5cm/sec. | 0,4 mV
Channel balance at 1 kHz | < 1 dB
Channel separation at 1 kHz | > 24 dB
Channel separation at 15 kHz | > 20 dB
Frequency range at - 3dB | 20 - 55 kHz
Frequency response 20 Hz - 20 kHz | +/-1,5
Tracking ability at 315Hz at recommended tracking force *) | 80 µm
Compliance, dynamic, lateral | 12 µm/mN
Stylus type | Nude Ortofon Replicant on conical alu cantilever
Stylus tip radius | r/R 5/100 µm
Tracking force range | 2,2-2,7 g (22-27 mN)
Tracking force, recommended | 2,5 g (25 mN)
Tracking angle | 23°
Internal impedance, DC resistance | 5 Ohm
Recommended load impedance | 50-200 Ohm
Cartridge body material | Stainless steel / Aluminium
Cartridge colour | Bronze/Black
Cartridge weight | 10,7 gram
